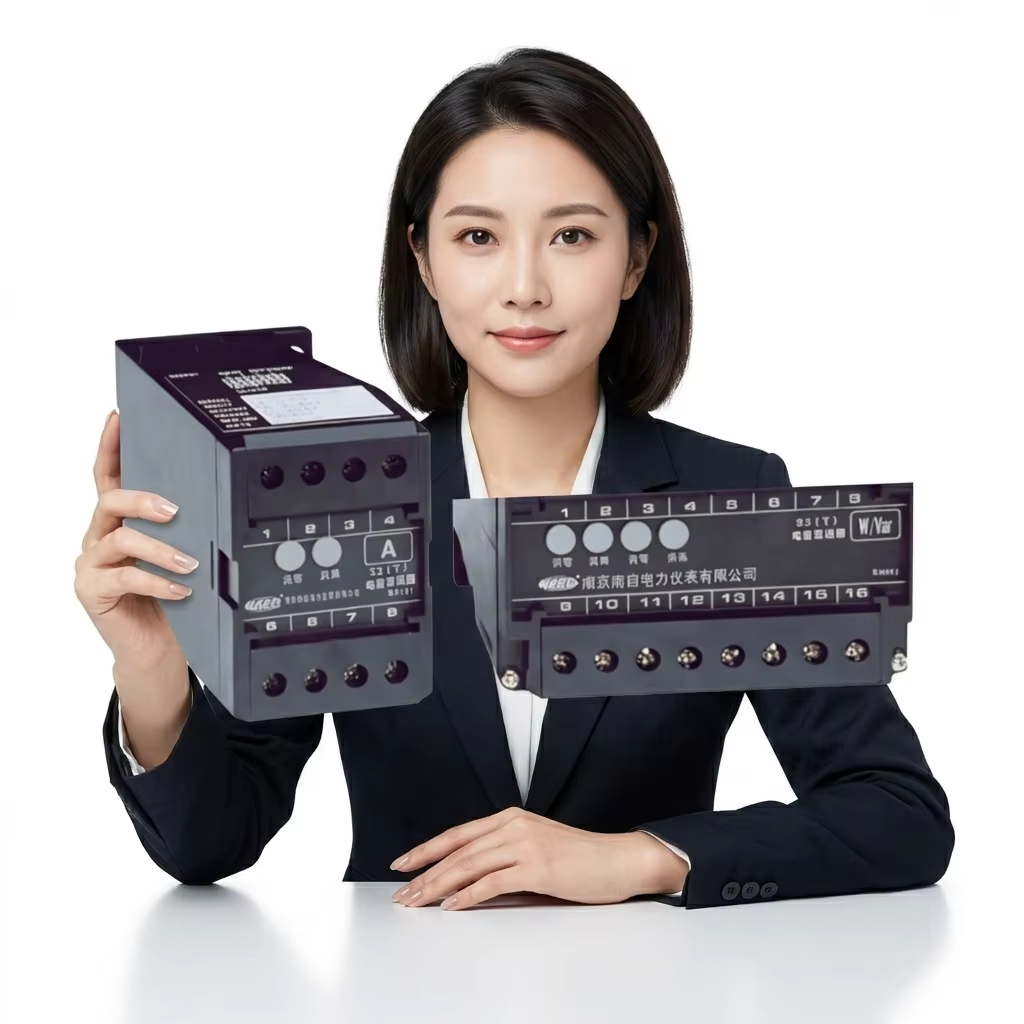

The S3(T) Series Flagship Transmitter represents the high-end tier of power transducers, designed for applications where measurement accuracy is non-negotiable. With an Accuracy Class of 0.2, the S3(T) series provides superior precision compared to standard industrial transmitters, making it the preferred choice for utility-grade monitoring, high-precision power analysis, and laboratory-level industrial control.
Combining advanced Hybrid Thick-Film Circuitry with ultra-linear sensors, the S3(T) converts complex AC/DC parameters into standardized, high-stability analog signals with minimal long-term drift and exceptional reliability.
0.2 Class Flagship Accuracy
●: Delivers elite-level precision for critical data monitoring and billing-grade references.
Advanced Hybrid Thick-Film Technology
●: Ensures excellent thermal stability and long-term consistency (annual drift < 1 accuracy class).
Comprehensive Signal Conversion
●: Supports a full range of inputs—AC/DC Voltage, Current, Active/Reactive Power, Frequency, Phase Angle, and Temperature (RTD/TC).
Superior Isolation & Protection
●: High dielectric strength of
2.0kV AC / 1 minute
and integrated lightning/surge protection.
Versatile Mounting
●: Supports standard
35mm DIN Rail mounting
, screw tightening, or relay-style plug-in sockets for maximum installation flexibility.
Industrial Ruggedness
●: High-strength flame-retardant housing with safety terminal covers for secure operation.
Parameter | Specification |
Accuracy Class | 0.2 Class (High Precision) |
Input Parameters | AC/DC Current (A), AC/DC Voltage (V), Power (W/Var), Hz, Phase, Temp |
Output Signals | DC 4-20mA, 0-20mA, 0-5V, 0-10V, 1-5V, etc. |
Response Time | ≤ 400ms (High-speed Optional ≤ 200ms) |
Frequency Range | 45Hz ~ 65Hz (Nominal 50/60Hz) |
Dielectric Strength | AC 2.0kV / 1 minute (Input/Output/Power/Case) |
Insulation Resistance | ≥ 100MΩ (500VDC) |
Temperature Coefficient | ≤ 100ppm/℃ (Excellent Thermal Stability) |
Housing Material | High-strength Flame Retardant Plastic |
Mounting Type | 35mm DIN Rail or Screw Mounting |
The S3(T) series is available in three primary housing sizes to optimize cabinet space:
Standard AC Type
●: 110 × 75 × 70 mm (L × W × H)
Slim DC/Temperature Type
●: 110 × 50 × 70 mm (L × W × H)
Multi-Function/Power Type
●: 110 × 110 × 70 mm (L × W × H)
Utility & Substations
●: High-precision monitoring of grid power quality and load balancing.
Energy Audit Systems
●: Reliable data source for energy consumption analysis and efficiency optimization.
Advanced Industrial Automation
●: Precision feedback for high-end motor drives and chemical process control.
Telecommunications
●: Monitoring power stability in data centers and base stations.
Marine & Railway
●: Rugged and precise signal conversion for harsh transportation environments.
Feature | S3(T) Series (High-End) | N3 Series (Standard) |
Accuracy | 0.2 Class | 0.5 Class |
Target Market | Precision Utility / Lab Control | General Industrial Monitoring |
Circuitry | Flagship Hybrid Thick-Film | Standard Integrated Circuits |
Cost | Premium Performance | Cost-Effective Solution |
To provide the most accurate configuration, please confirm:
Measurement Variable
1. : (e.g., 3-Phase Active Power, AC Current)
Input Range
2. : (e.g., AC 0-5A, 0-380V)
Output Signal
3. : (e.g., 4-20mA DC, Dual Output available)
Auxiliary Power
4. : (e.g., AC 220V, DC 24V, or DC 110V)
S3(T) Series: The Standard of High-Precision Signal Conditioning. When accuracy is your priority, the S3(T) series provides the stable, verified, and professional-grade performance your system deserves.
