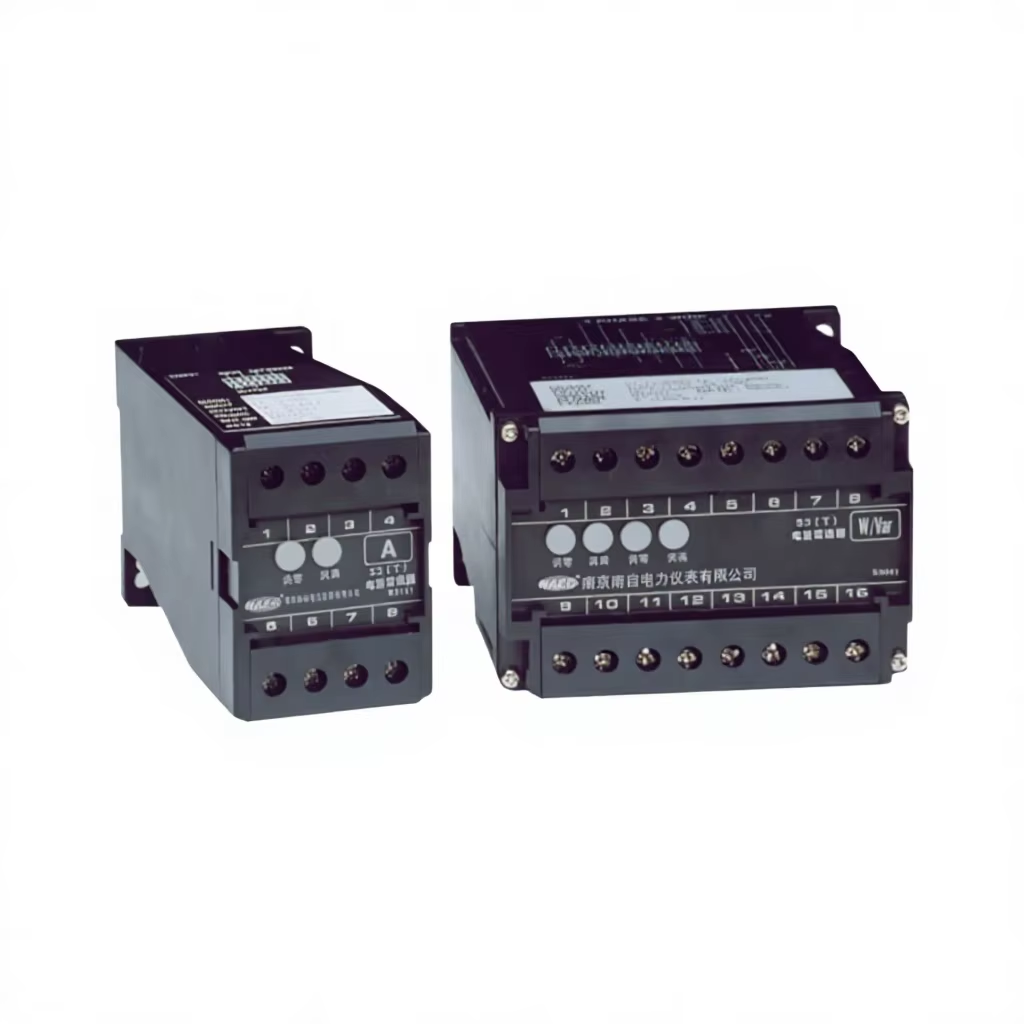

N4 Series Ultra-High Precision Transmitter - 0.1/0.2 Class Accuracy

1. Product Overview

The N4 Series High-Performance Transmitter is an ultra-high precision power transducer specifically engineered for Non-Electrical quantities (e.g., Temperature) and DC Signal conversion (DC Current/Voltage).

Positioned as a premium tier in the N series, the N4 achieves an exceptional 0.1 Class or 0.2 Class accuracy. It utilizes specialized hybrid thick-film circuits and ultra-linear sensors to convert complex input signals into standardized linear analog outputs, making it the top choice for laboratories, high-end industrial automation, and critical power system monitoring where every decimal counts.

2. Key Features & Superior Performance

Ultra-High Precision

●: Accuracy class up to

0.1 Class

, significantly higher than standard industrial transmitters.

Compact Space-Saving Design

●: At only

34mm width

(120x34x75mm), it is nearly 25% slimmer than standard AC transmitters, allowing for higher density installation in control cabinets.

Fast Response Technology

●: Standard response time ≤ 400ms, with high-speed models capable of an incredible

≤ 10ms response

.

Extreme Temperature Stability

●: Temperature coefficient ≤ 100ppm/℃ with a wide operating range (-25℃ to +70℃ limit).

Superior Isolation & Safety

●: 2.0kV (50Hz/1min) dielectric strength and integrated safety terminal covers.

Long-Term Reliability

●: Designed for continuous operation with a yearly drift of less than one accuracy class.

3. Technical Specifications

4. Product Functions & Target Inputs

The N4 series excels in processing low-level DC and thermal signals:

N4-DV/DA

●: DC Voltage and DC Current isolation and amplification.

N4-TR

●: Temperature transmitters (PT100, Thermocouple) for industrial heating processes.

DC Signal Isolators

●: 1-in-1-out or multi-channel signal isolation for PLC/DCS protection.

5. Ideal Application Scenarios

High-End Manufacturing

●: Precision motor control and battery testing systems.

Laboratory & Calibration

●: Signal conditioning for high-accuracy data acquisition.

Thermal Process Control

●: Precise temperature monitoring in furnaces, chemical reactors, and food processing.

PLC/DCS Signal Buffering

●: Isolating and standardizing field signals for high-performance control systems.

Renewable Energy Storage

●: Monitoring DC bus voltage and current in battery management systems (BMS).

6. Comparison: N4 vs. N3 Series

7. Model Selection Guide (Sample)

Please specify when ordering:

Input Signal Type

1. : (e.g., DC 0-75mV, PT100 0-100℃)

Output Signal

2. : (e.g., DC 4-20mA)

Accuracy Required

3. : (0.1 Class or 0.2 Class)

Power Supply

4. : (e.g., DC 24V or AC 220V)

The Precision Leader for Your Control System N4 Series represents the pinnacle of signal conditioning technology, combining lab-grade precision with industrial-grade ruggedness.
