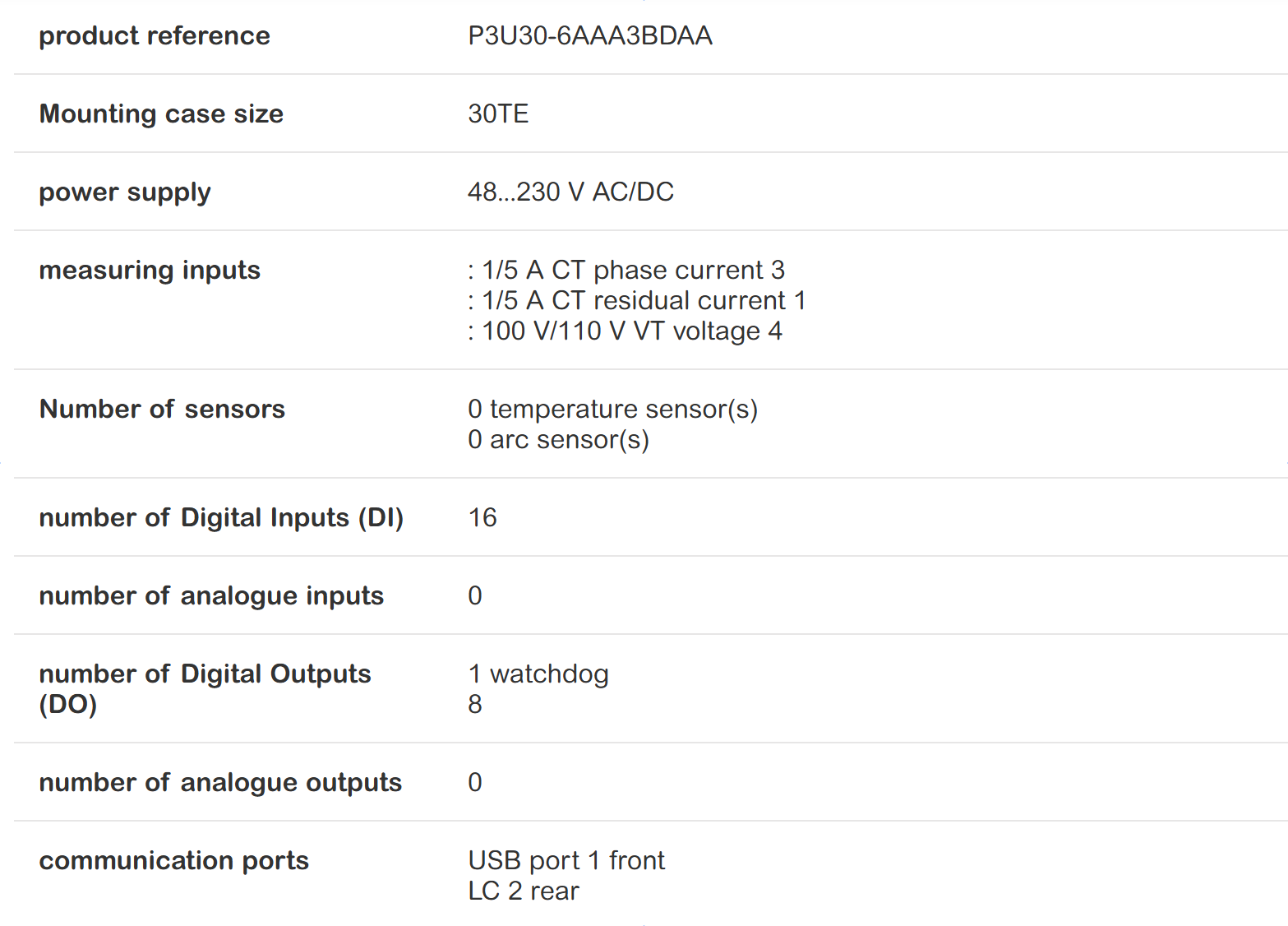

Perfectly suited for buildings and industry, utilities, and large industrial processes. The relay include protection for overcurrent, overload, broken conductor, earth-fault and breaker failure as per ANSI. It also feature an automatic recloser, a switch ON to fault, inrush protection and lockout among others. Simple, reliable, safe and easy-to-use, thanks to the User Interface display. The protection relay can to be supplied by a 48 VAC/VDC to 230 VAC/VDC network. It include 16 digital inputs, a LC communication port and 1 USB on front of the device. Mechanical dimensions are 169.5 mm in height, 170 mm in width and 205 mm in depth. The relays are certified with EN 60255-26 for electromagnetic compatiblity. The device is compatible with aditional modules and accessories: connection cables, communication modules, temperature and analogue input and output modules, LPVT & PLCT option, arc flash sensors, and other accessories.

protection functions

Phase overcurrent 50/51

Directional phase overcurrent 67

Earth fault overcurrent 50N/51N

Directional earth fault 67N

Transient earth fault 67NI

Capacitor bank unbalance 51C

Broken conductor 46 I2/I1

Cold load pick-up

Switch ON to fault (SOTF)

Breaker failure 50BF

Directional active underpower 37P

Fault locator 21FL

Recloser 79

Phase undercurrent 37

Excessive starting time, locked rotor 48/51LR

Motor restart inhibition 66

Capacitor overvoltage 59C

Negative sequence overcurrent 46

Overvoltage 59

Undervoltage 27

Positive sequence undervoltage 27P

Earth fault overvoltage 59N

Underfrequency 81/81N

Rate of change of frequency 81R

Synchro-check 25

Lockout relay 86

CT supervision 60

VT supervision 60

H2 detection 68H2

H5 detection 68H5

Programmable stages 99
