1. Cite DL/T 720-2000 (general technical conditions for power system relay protection cabinets and screens) to meet other relevant national requirements

Regulations, specified requirements and technical standards.

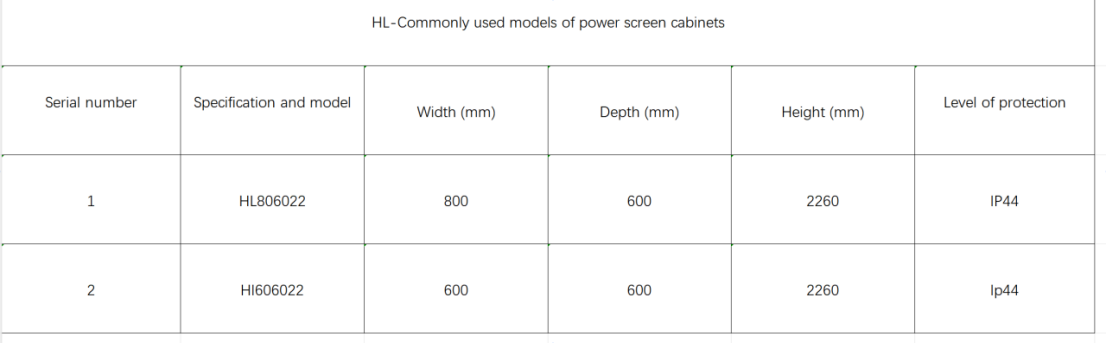

2. Screen cabinet size: 2260x800x600 (height × width × depth) MM, cabinet clear height 2200MM, door slot height 60MM.

3. Material thickness

SPCC high-quality cold rail steel plate, column 2.0 MM, frame, installation beam, front door 1.5 MM, rear door, side panel 1.2 MM.

4. Color

National standard RAL7035 color, other colors can be customized by contacting customer service, construction period: 8 days for delivery.

5. Structure

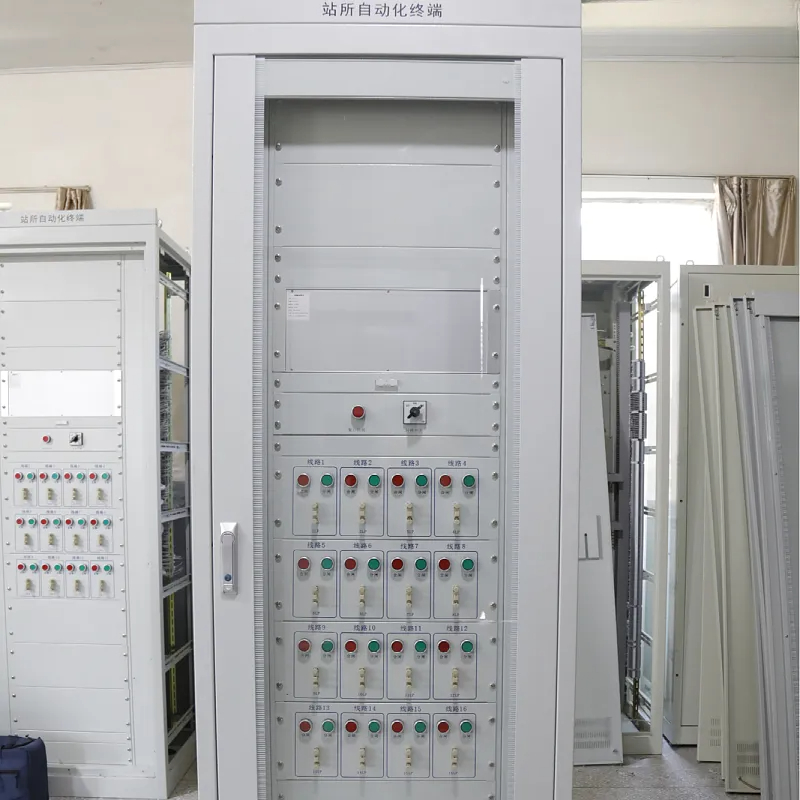

1. Frame: The cabinet adopts a welded structure, with embedded front and rear doors and side panels.

2. Front single glass door, rear double door, front and rear doors adopt MS828 model door lock, three-point locking, quick-opening side door.

3. There are four detachable bottom plates at the bottom of the screen cabinet.

4. The top of the screen cabinet is equipped with ventilation holes, a 60MM door structure and 4 M12 lifting rings are installed.

5. The inside of the cabinet is guaranteed to be 19 inches. 19-inch equipment such as switches can be installed on the shelves. Vertical installation liners can also be customized.

Open holes to install electric meters, switches and other components.

6. Standard configuration

One set of cabinets, one set of front and rear doors, left and right side doors, four 19-inch columns, three trays and two trunks.

7. Optional configuration

Front sealing plate, lighting tube, forming switch, PDU power supply, fan, 19 "grounding bronze plate, terminal rail, etc.
