Overview

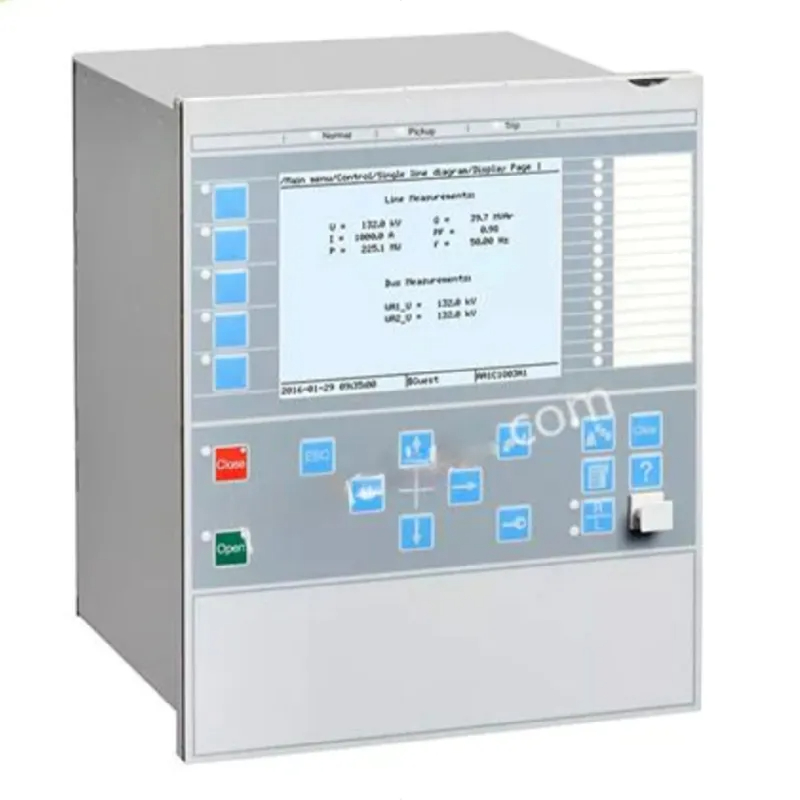

The ABB RET650 is part of the Relion® 650 series, designed for transformer and reactor protection in industrial environments. It provides reliable protection and control features for efficient operation.

Technical Specifications

◦  Model: RET650

◦  Type: Transformer Protection IED

◦  Voltage Rating: Supports a wide range of voltage levels for transformer applications.

Protection Functions

◦  Transformer Differential Protection: Protects against internal transformer faults.

◦  Restricted Earth Fault Protection: Detects earth faults within transformer windings.

◦  Overcurrent and Thermal Overload Protection: Safeguards transformers from excessive currents and overheating.

◦  Voltage and Frequency Protection: Ensures proper voltage and frequency levels for transformers.

Communication Protocols

The ABB RET650 supports the following protocols:

◦  IEC 61850

◦  Modbus

◦  DNP3

◦  And more for seamless integration with various systems.

HMI Features

◦  Dynamic Three-Color Indication LEDs: Provides clear operational status.

◦  Configurable Push-Button Shortcuts: Allows for user-friendly interface customization.

Temperature Range

◦  Operating Temperature: -25°C to +55°C for reliable performance.

◦  Storage Temperature: -40°C to +85°C ensures safe storage in various conditions.
