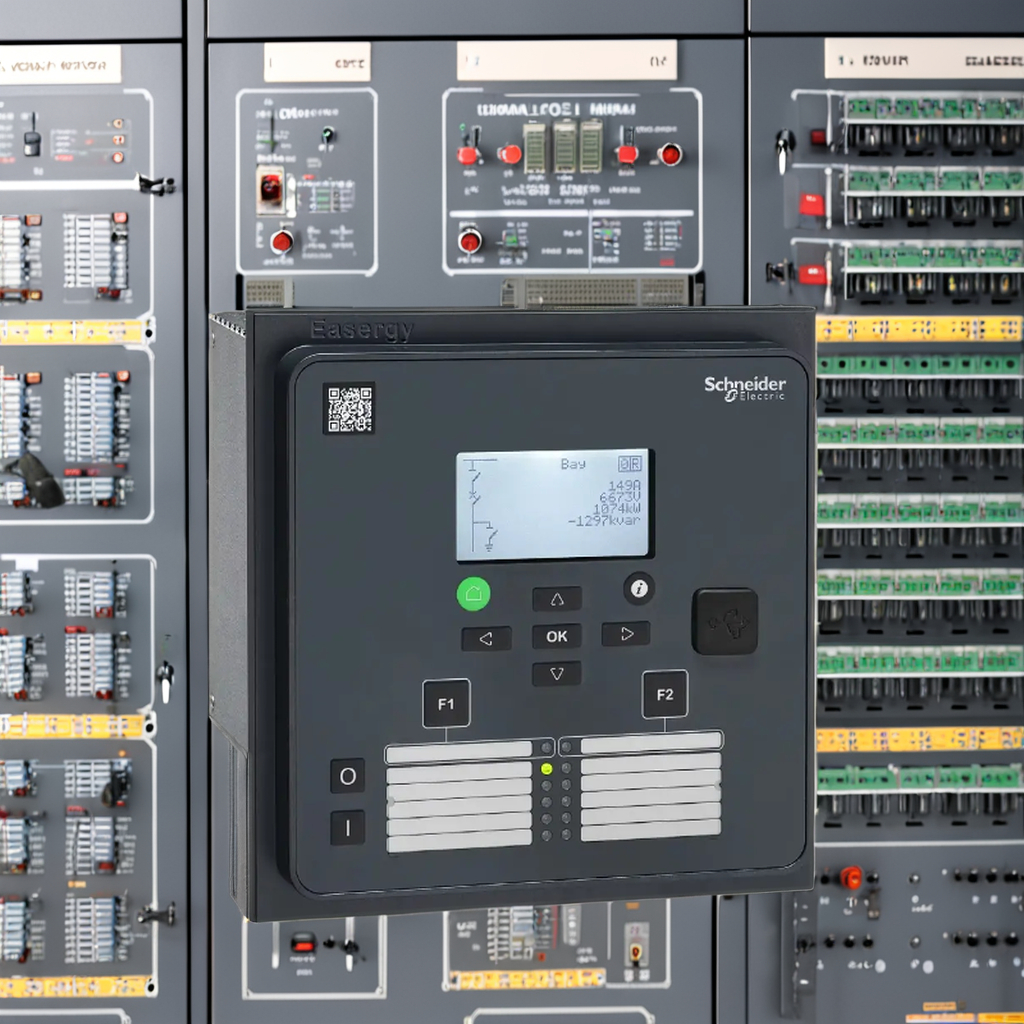

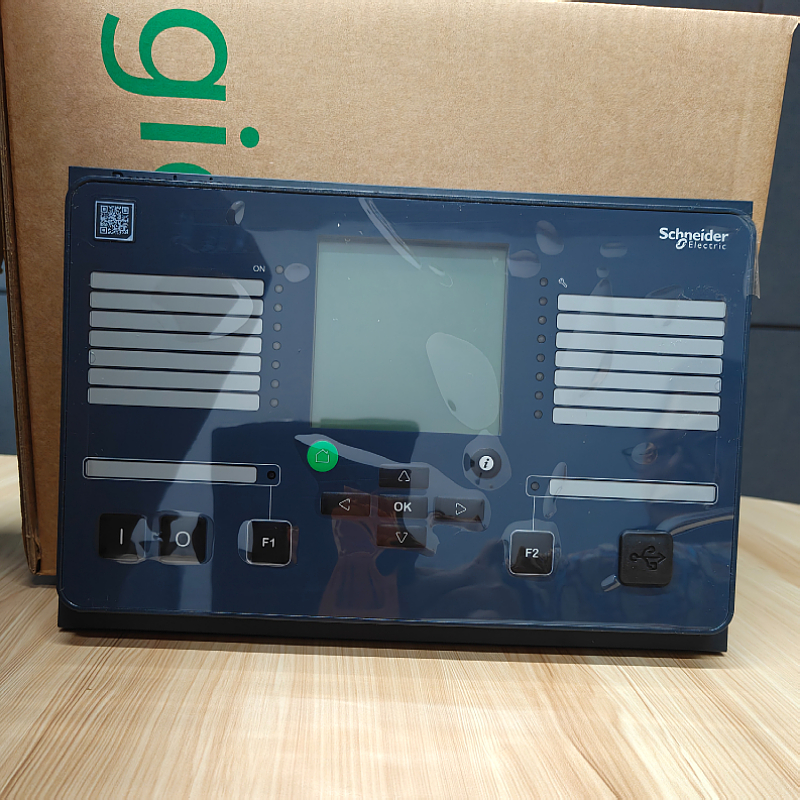

Schneider Easergy P3T32 Relay has a modular design, and it can be optimized to medium and big sized transformers.

Schneider Easergy P3T32 Relay Main characteristic and options

• The relay is a transformer protection relay for medium sized transformers in power distribution.

• The relay has an optional interface for connecting four arc flash point sensors.

• The relay has optional arc flash communications and high speed outputs to allow for simple arc flash system configuration.

• Two alternative display options

◦ 128 x 128 LCD matrix

◦ 128 x 128 LCD matrix detachable

• Power quality measurements and disturbance recorder enable capture of transients

• Wide range of communication protocols, for example:

◦ Modbus TCP/IP

◦ Profibus

◦ IEC61850

The following options depend on the order code:

• power supply options

• earth fault overcurrent input sensitivity

• number of digital inputs

• number of trip contacts

• integrated arc-options (point sensors)

• various possibilities with communication interfaces:

◦ high-speed outputs

◦ simple arc flash system communications (BIO)

◦ fiber loop

• front panel protection of IP54

Schneider Easergy P3T32 Relay Protection functions

• Universal, adaptive protection functions for user-configurable transformer applications

• Neutral voltage displacement, overvoltage and frequency protection including synchrocheck for two breakers

2 Product introduction Transformer protection relay P3T/en M/J006 19

• Single-line diagram, measurements and alarms in the user-machine interface (UMI)

• User-configurable interlocking for primary object control

• Optional arc flash detection utilizing point sensors and a fiber loop that can

provide system wide arc flash detection.

Virtual injection

• Current and voltage injection by manipulating the database of the product by setting tool disturbance recorder file playback through the product’s database Robust hardware

• User-selectable Ethernet, RS485 or RS232 -based communication interfaces

• Designed for demanding industrial conditions with conformal-coated printed circuit boards

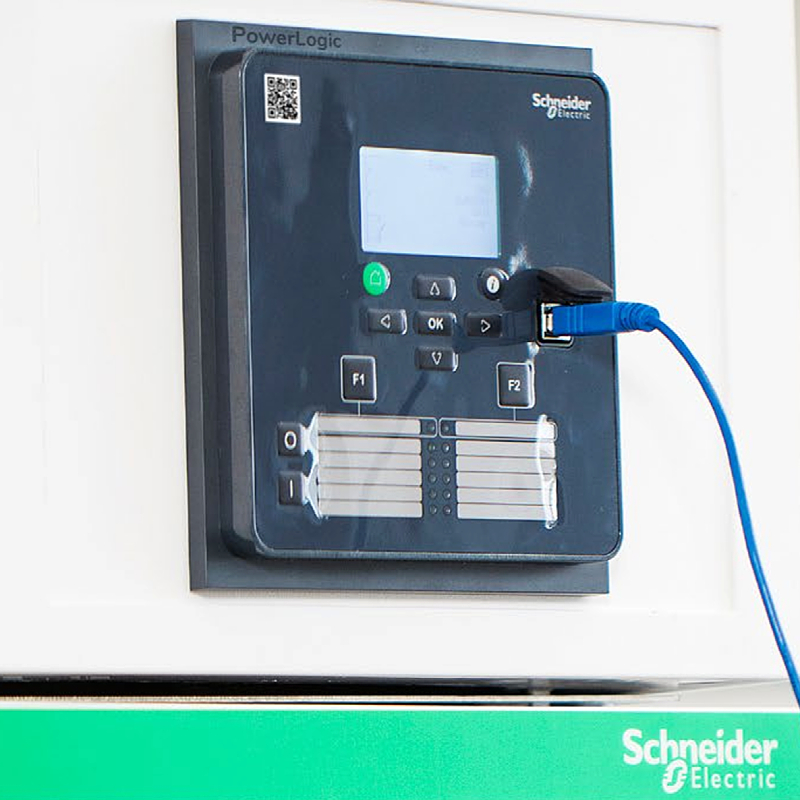

• Standard USB connection (type B) for Easergy P3 setting software Common technology for cost efficiency

• Powerful CPU supporting IEC 61850

• Thanks to four setting groups, adaptation to various protection schemes is convenient

User-machine interface (UMI)

• Clear LCD display for alarms and events

• Single-line diagram mimic with control, indication and live measurements

• Programmable function keys and LEDs

• Circuit breaker ON/OFF control

• Common firmware platform with other Easergy P3 range protection relays
