Overview:

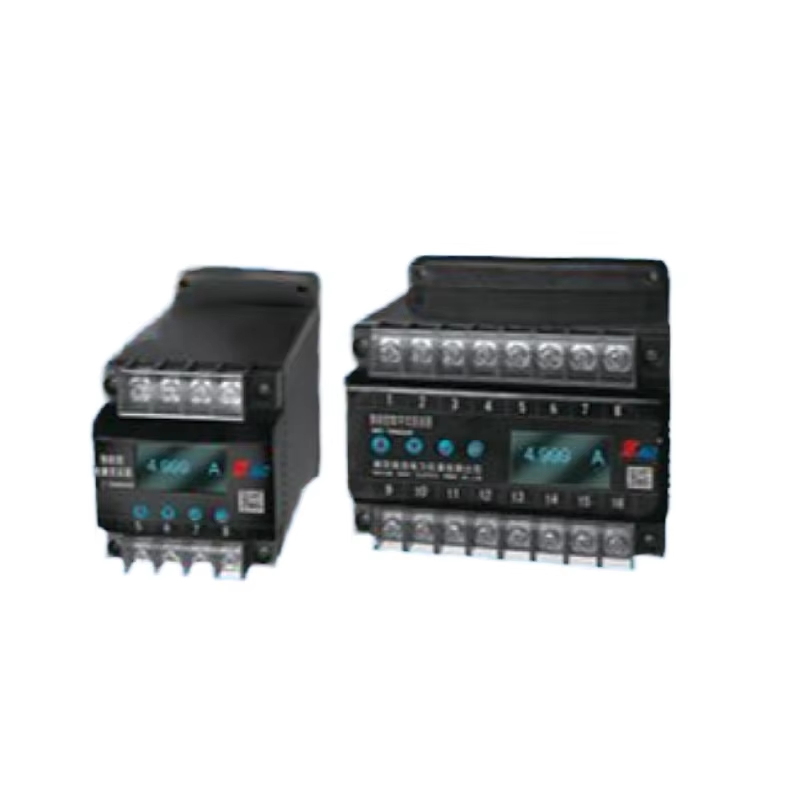

<1>. N3 series AC  transmitter, it converts AC signals from AC transformers into standard process signals. It is used for monitoring the power supply line and its voltage,and monitoring the overload of nonstandard pressure drop.

<2>. The distortion waveform of input signal does not affect the measurement accuracy

<3>. The input,output and power supply are isolated from each other.

<4>. Standard 35mm DIN rail independent mounting. Full channel configuration, parameter customizable.

<5> 0.5-stage three-phase four-wire active power transmitter

Input nominal current: 5A:

Input nominal voltage: 63.5 V;

Input nominal power: 952.5 W;;

Input signal frequency: 50 + 5Hz

Output range: 4mA-20mA

Corresponding to 0-952.5 W;

Auxiliary power supply: AC220V;

Type selection: N3-WD-3S-555A4BN

<6> 0.2-stage three-phase four-wire active power transmitter

Input nominal current: 5A

Input nominal voltage: 220V;

Nominal input power: 3300W;

Input signal frequency: 50 ± 5Hz;

Output range: -10V - 0 ~ 10V

Corresponding to -3300W ~ 0 ~ 3300W;

Auxiliary power supply: AC I00V:
