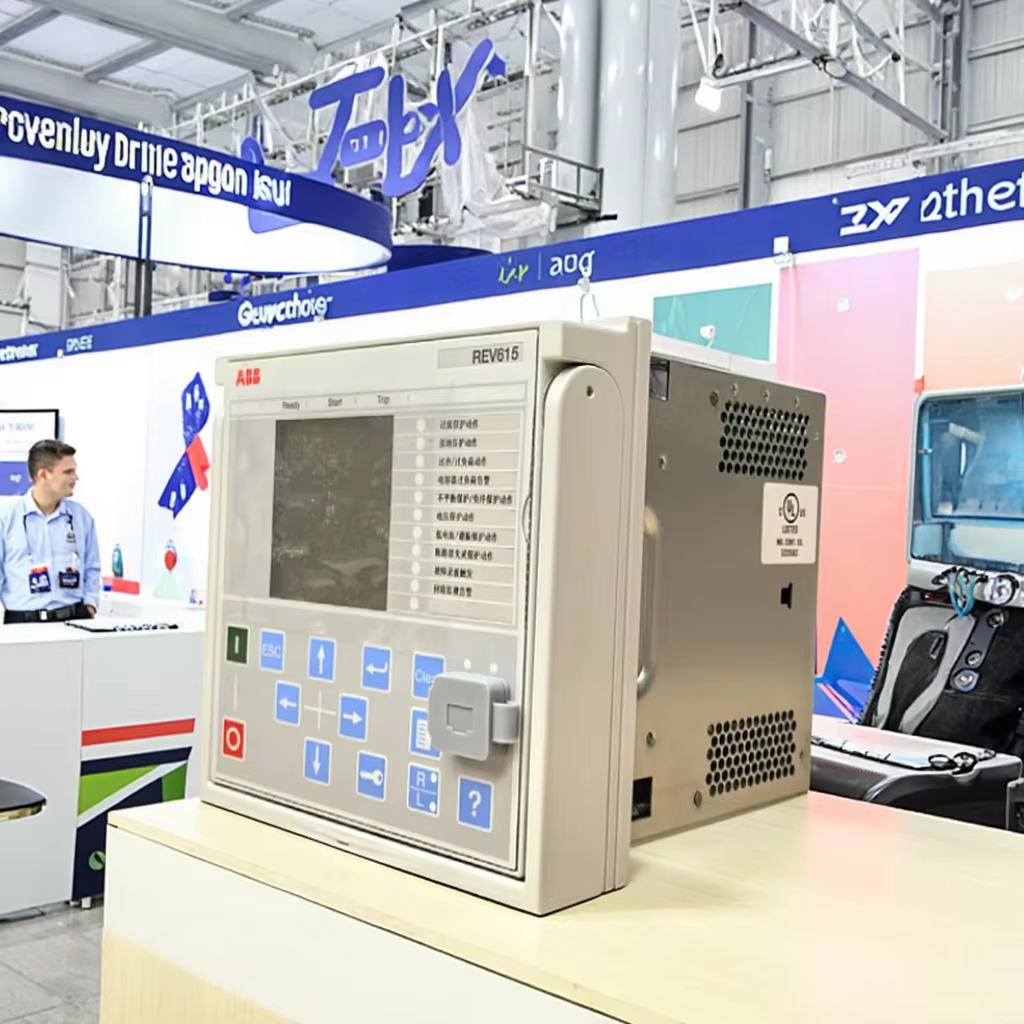

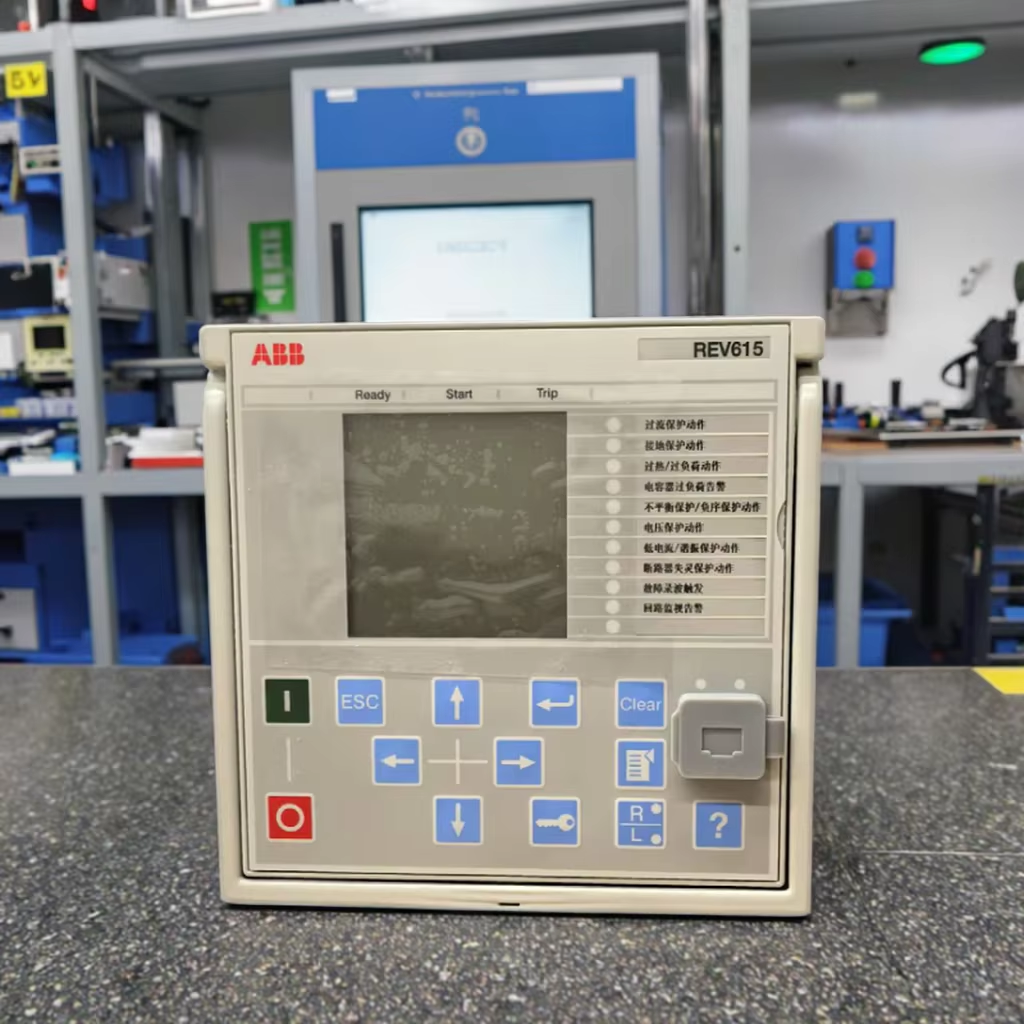

Capacitor bank protection and control ABB REV615 numerical relay Compact and versatile solution for utility and industrial power distribution systems ABB REV615 is a dedicated capacitor bank protection and control relay for protection, control, measurement and supervision of capacitor banks used for compensation of reactive power in utility and industrial power distribution systems.

Compact and versatile solution for utility and industrial power distribution systems with integration of protection, control,

monitoring and supervision in one relay. Extensive range of protection and control functionality for H-bridge, double-Y-connected and single-Y-connected capacitor banks and feeder cables as well as for harmonic filter circuits.

Scope

Protection for capacitor banks and harmonic filter circuits

Product benefits

 * Ready-made standard configurations for fast and easy setup with tailoring capabilities

 * Withdrawable plug-in unit design for swift installation and testing

 * Large graphical display for showing customizable SLDs, accessible either locally or through an easy-to-use web-browser-based    HMI

 * Extensive life-cycle services

Product features

 * Capacitor bank overload and unbalance protection, non-directional overcurrent and directional earth-fault protection, voltage  and frequency-based protection and measurement functionality

 * Current-based unbalance protection with compensation for natural unbalance as well as current-based switching resonance  protection for capacitor banks

 * Optional arc protection and high-speed outputs

 * Supports IEC 61850 Editions 1 and 2, including HSR and PRP, GOOSE messaging and IEC 61850-9-2 LE for less wiring and supervised

   communication

 * IEEE 1588 V2 for high-accuracy time synchronization and maximum benefit of substation-level Ethernet communication

 * Supports Modbus, DNP3 and IEC 60870-5-103 communication protocols

ABB Numerical relays

ABB Numerical relays are based on the use of microprocessors. A big difference between conventional electromechanical and static relays is how the relays are wired. Electromechanical and static relays have fixed wiring and the setting is manual. Numeric relays, on the other hand, are programmable relays where the characteristics and behavior can be programmed. Most numerical relays are also multifunctional.

Scope

 * Modern protection relays

 * Multifunctional protection

Product benefits

 * Provide continuity of power to consuments

 * Protection of network assets

 * Protection against life-threatening electrical incidents

Product features

 * Self-checking facility

 * Low burden relays improve accuracy

 * Fast fiber optical communication with substation LAN

 * Adaptive relaying schemes

 * Permit storage of historical data

 * Time stamping
