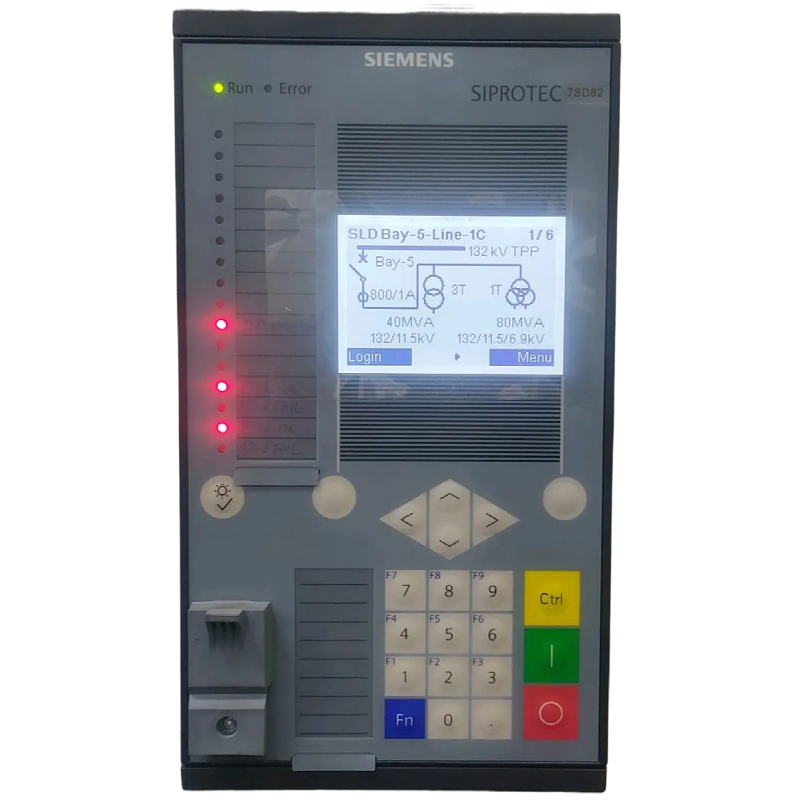

7SD82

✅ 3 NO'S OF SIEMENS 7SD82 RELAY

✅ Adaptive 87L Line Differential Protection (multiple bays)

✅ Charging Current Compensation fully activated & verified

✅ Adaptive CT saturation & inrush blocking algorithm tuned

✅ 19 ms minimum tripping time achieved (end-to-end)

✅Integrated IEC 61850 GOOSE for inter-bay tripping & interlocking

✅Protecting a standard point-to-point line is one thing, but managing a 3-end (three-ended) topology requires a higher level of precision and communication.

The Siemens 7SD82 relay is a powerhouse for these complex configurations. Whether you’re dealing with overhead lines or cables, here is how it handles 3-end systems:

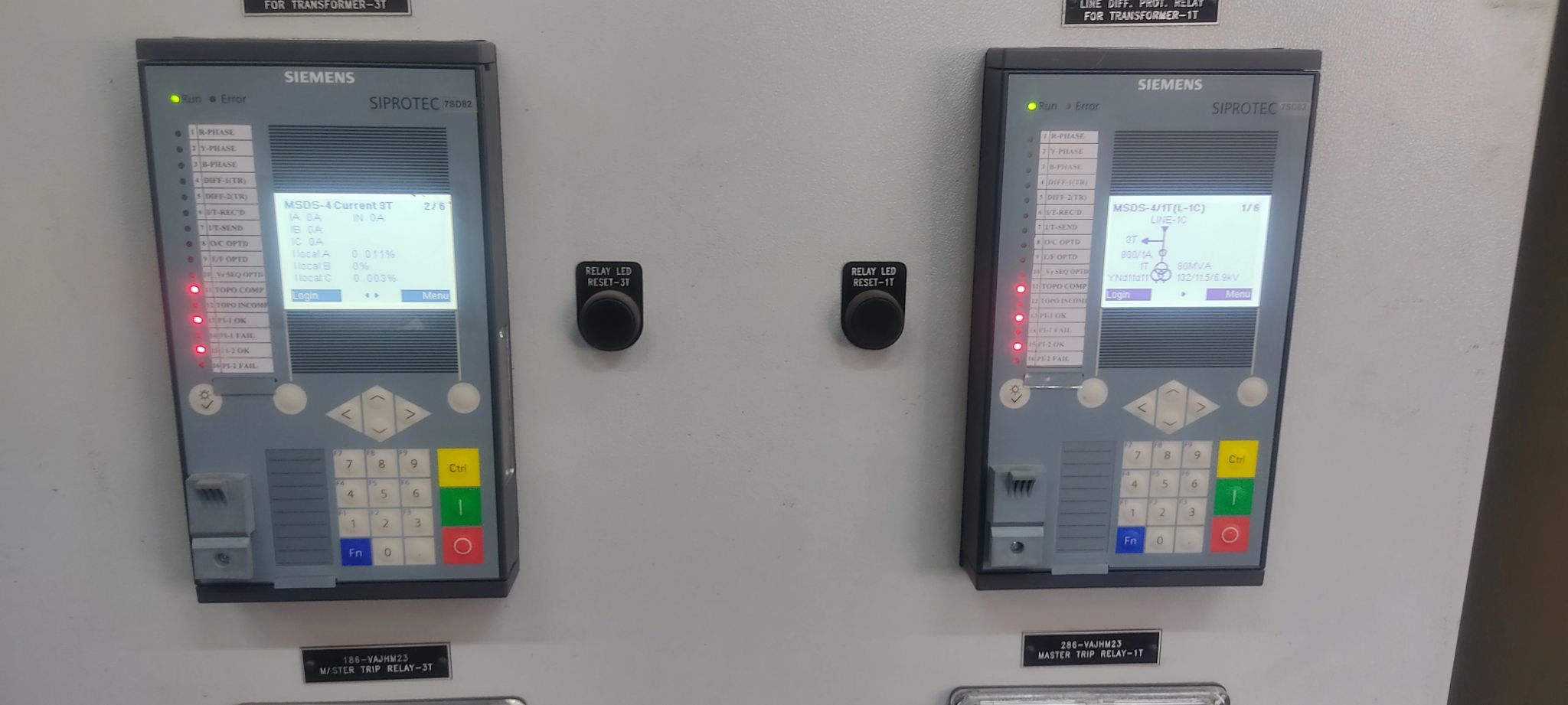

**🎯 CONFIGURATION & TESTING DONE (DIGSI 5 + Secondary Injection):**

- Full device parameterization in DIGSI 5 (87L slopes, restraint characteristic, harmonic blocking)

- Charging current compensation tested under light-load & open-line conditions

- Differential stability verified on external faults (through-current up to 15×In)

- End-to-end communication test (fiber/Ethernet link) with SIGRA waveform analysis

- IEC 61850 Edition 2 SCD created – GOOSE Publisher/Subscriber mapping + VLAN/Priority tagging

- Test Mode + Simulation in DIGSI 5 + IEDScout for safe breaker operation checks

- PRP/HSR redundancy enabled for zero communication downtime
