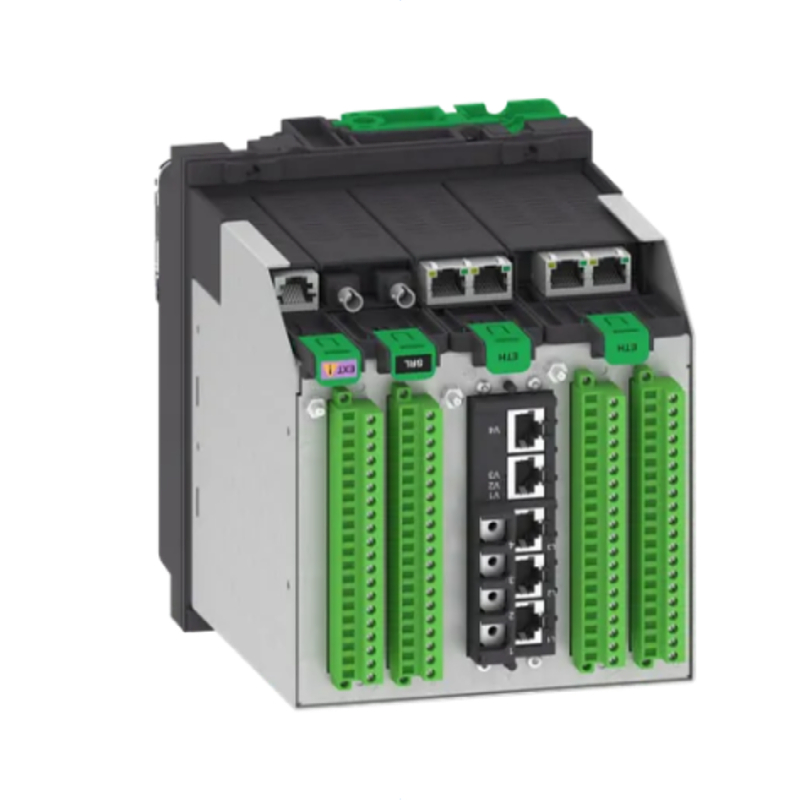

Schneider Electric’s PowerLogic P5M30 protection relays represent a state-of-the-art, highly integrated, and compact digital protection solution meticulously engineered for the demanding requirements of medium- to large-sized rotating electrical machines—such as high-voltage motors, generators, synchronous condensers, and large induction machines—commonly deployed across critical industrial infrastructure, power generation plants, water and wastewater treatment facilities, oil & gas installations, mining operations, and marine propulsion systems. Designed with deep domain expertise and extensive field validation, the P5M30 goes far beyond the capabilities of traditional electromechanical or basic digital relays by delivering a comprehensive, multi-layered protection, control, monitoring, and diagnostic platform in a single, space-efficient device. Its advanced architecture supports an extensive suite of IEC 61850-compliant protection functions—including differential protection (87M/87G), overcurrent (50/51), earth-fault (50N/51N), thermal overload (49), loss-of-field (40), negative-sequence (46), undervoltage (27), overvoltage (59), underfrequency (81U), overfrequency (81O), reverse power (32), and many more—each configurable with high precision and adaptive logic. Beyond core protection, the relay integrates real-time condition monitoring via high-resolution waveform capture, harmonic analysis (up to 50th order), sequence component measurement, motor starting profiling, and generator synchronization support. It features powerful built-in fault recording (with pre- and post-fault snapshots), event logging with microsecond time-stamping, and intelligent alarm management with customizable priority levels and cause-and-effect mapping. Diagnostic capabilities include predictive health indicators, insulation resistance trend analysis, bearing temperature correlation, vibration signature interpretation (when interfaced with external sensors), and automated root-cause diagnostics that accelerate troubleshooting. Maintenance aids such as guided commissioning wizards, intuitive web-based HMI, onboard configuration backup/restore, firmware update over Ethernet, and seamless integration with EcoStruxure™ Power Monitoring Expert and Asset Advis

or further enhance operational efficiency and lifecycle management. With its ruggedized IP20-rated enclosure, wide operating temperature range (−25°C to +70°C), dual Ethernet ports supporting redundant ring topology, and compliance with stringent international standards (IEC 60255, IEEE C37.90, UL 61000-4, EN 61000-6-2/4), the P5M30 delivers unmatched reliability, interoperability, and future-read.
