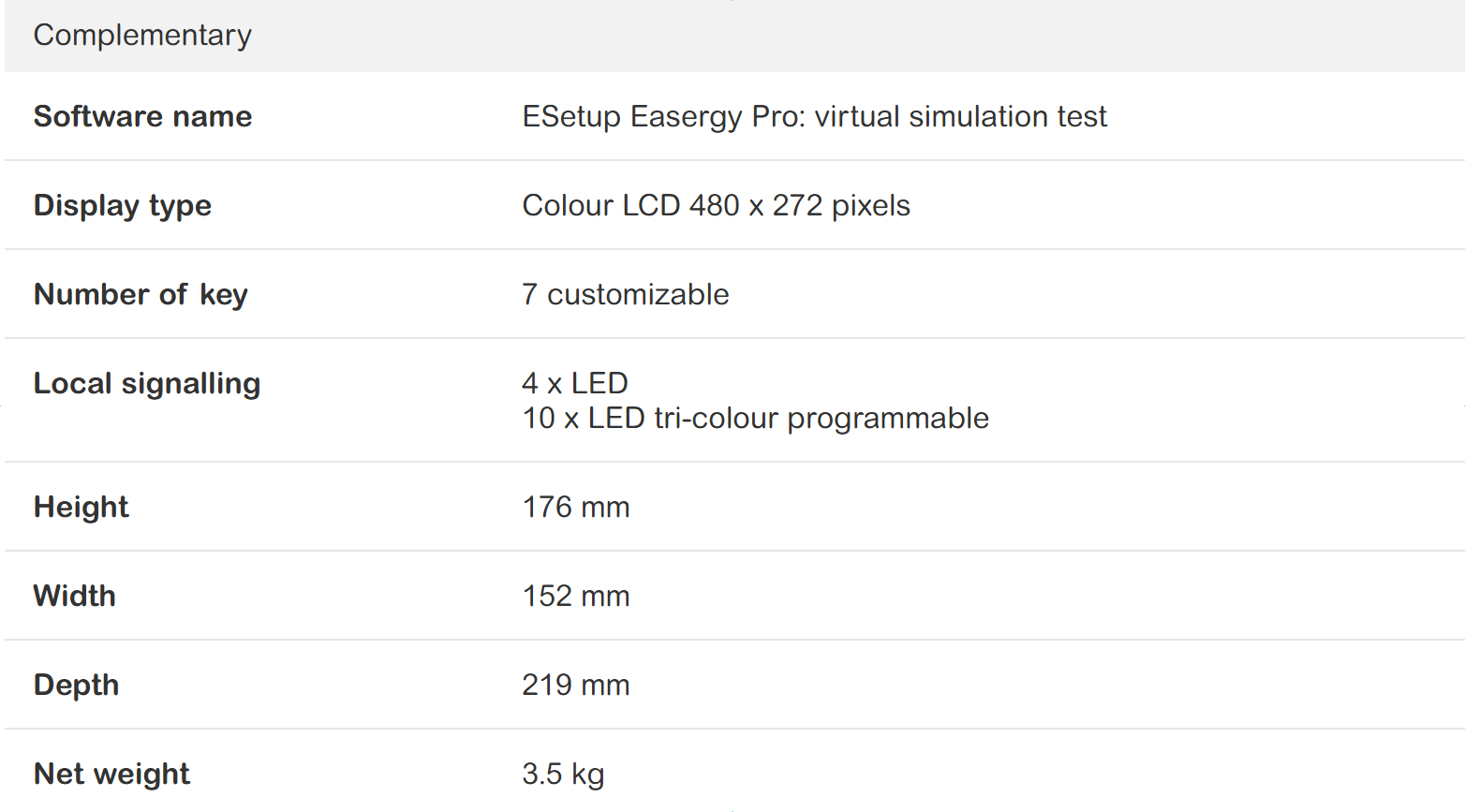

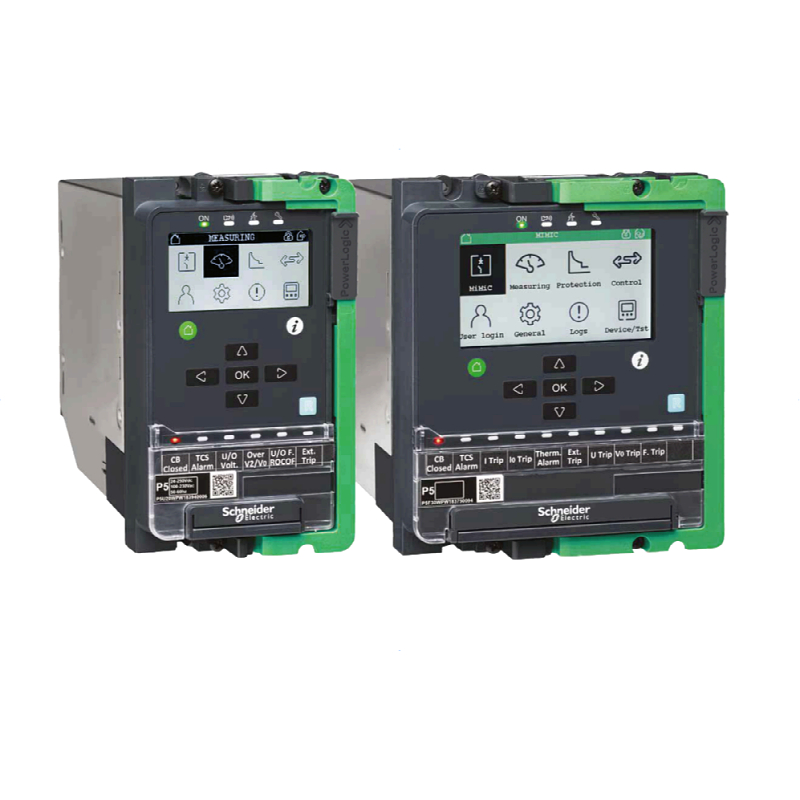

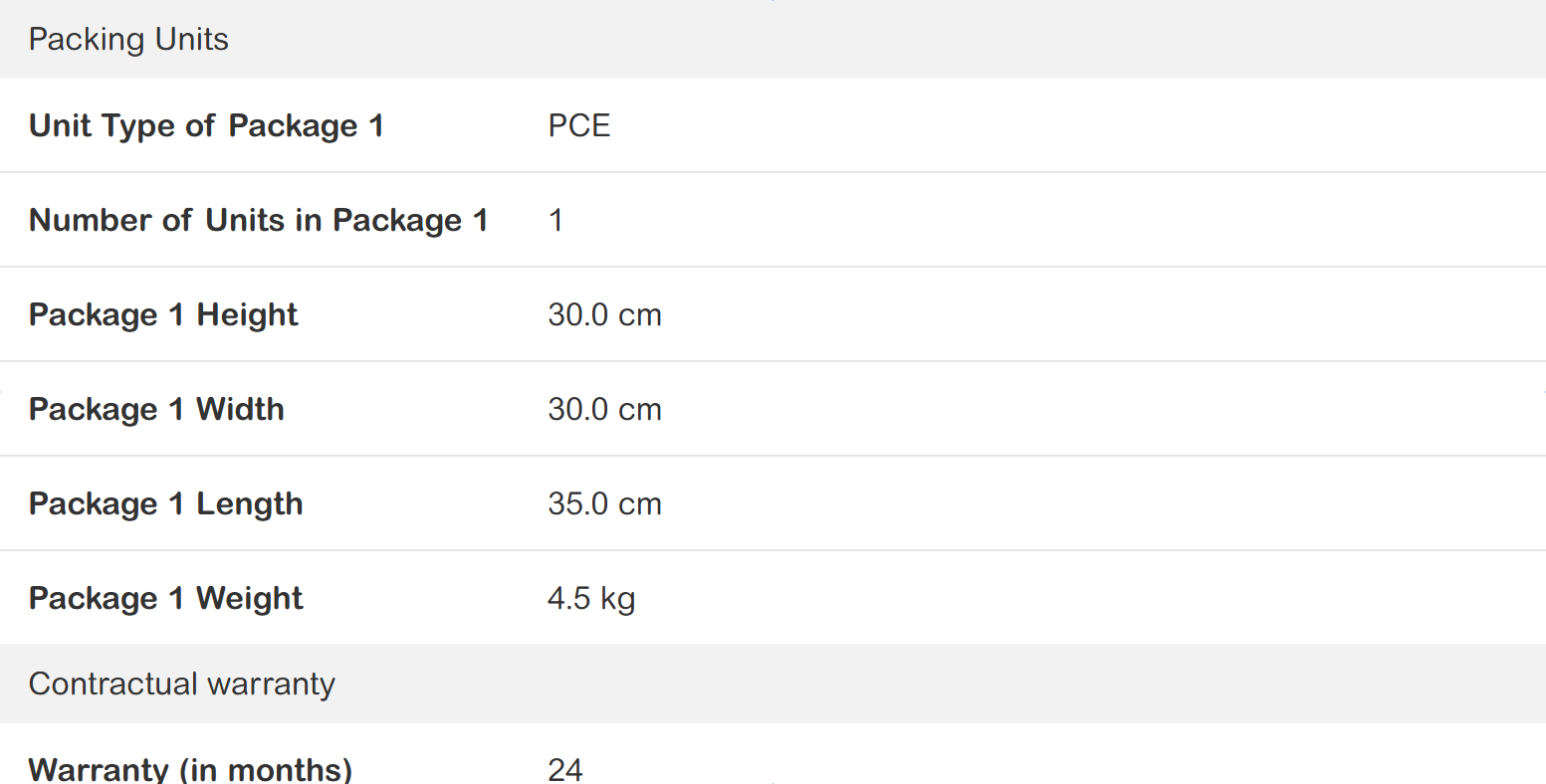

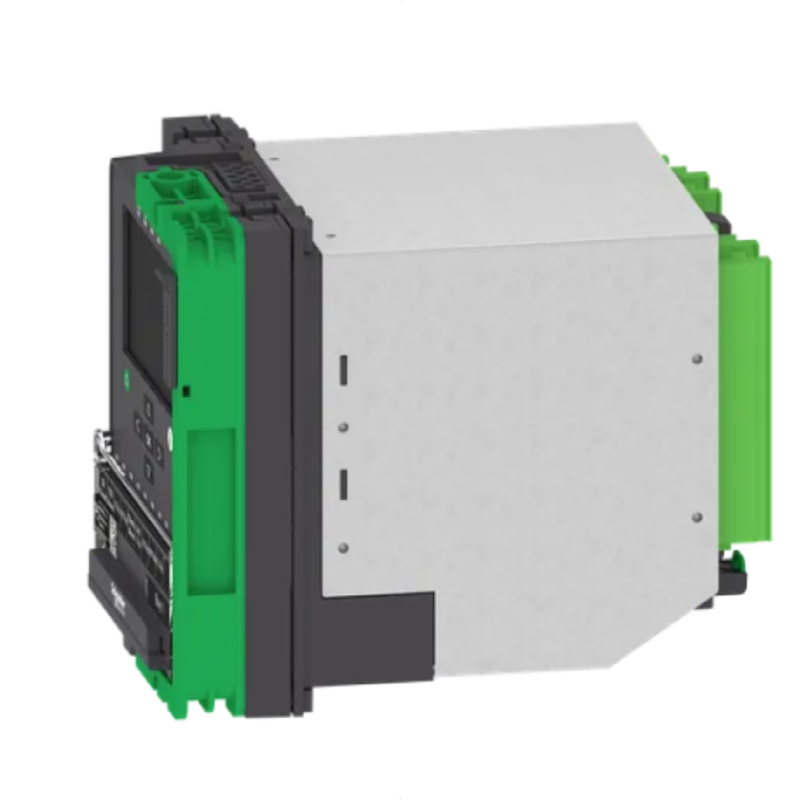

The Easergy P5 is Schneider Electric's withdrawable protective relay for demanding medium voltage distribution applications. This feeder relay offers withdrawable design with backup memory function enabling industry-leading 10 minute recovery time. It provides redundant Ethernet including IEC 61850 as well as plug and play communication modules that can evolve with your application. Easergy P5 offers safety, security, and connectivity built on more than 100 years of experience in protection relays. The Easergy P5 protection relay can be applied to all types of MV distribution networks. It can be supplied with 48 to 250 VDC and 100 to 230 VAC. It works with conventional CTs/VTs. 3 phase current inputs, 1 Schneider Electric specific CSH neutral current input and 4 voltage inputs. It offers 10 digital inputs and 8 digital outputs and no communications. Communication modules can be added any time. The product dimensions are 180 mm in height (7.09 in), 152,4 mm in width (6.00 in) and 224 mm in depth 8.82 in) for a net weight of 3.5 kg (7.7 lbs). Easergy P5 is compliant with EN 60255-26, EN 60255-27 standards and with UL Standard. It provides Marine certification. This product can be flush mounted on the panel or in the rack. Flush mounting frames to ensure IP54 are available. Fixing and wiring accessories are included. Plug & play communication modules: Ethernet RSTP RJ45 (REL51038), Ethernet RSTP FO (REL51039), Ethernet HSR/PRP FO (REL51033). And also 2nd Ethernet RSTP RJ45 (REL51042), RS485 serial RJ45 (REL51036), RS485 serial FO (REL51040), Extension/backup memory (REL51034). IP54 flush mounting frame (REL51052), CSH core-balance CTs (59635, 59636, 59637), 8 temperature sensor module (59641), IRIG-B module (REL51045). Connection cords (59660, 59661, 59662). eSetup Easergy Pro software with virtual injection testing and EcoStruxure Power Device app for simpler and safer operation and maintenance.

Protection  functions :

Phase  overcurrent  50/51

Directional  phase  overcurrent  67

Earth  fault  overcurrent  50N/51N

Directional  earth  fault  67N

Transient  earth  fault  67NI

Neutral  admittance  21YN

Earth fault wattmetric 32N

Capacitor bank unbalance 51C

Broken conductor 46 I2/I1

Current unbalance 46 I2/I1

Cold load pick-up

Switch ON to fault (SOTF)

H2 detection

H5 detection

Breaker failure 50BF

Directional active underpower 37P

Fault locator 21FL

Recloser 79

Negative sequence overcurrent 46

Overvoltage 59

Undervoltage 27

Earth fault overvoltage 59N

Underfrequency 81/81N

Rate of change of frequency 81R

Synchro-check 25

Lockout relay 86

CT supervision 60

VT supervision 60

Programmable stages 99

Programmable logic

Programmable curve

Measurement functions:

Current 3-phase

Current zero sequence

Current positive sequence

Current negative sequence

Current ratio of negative and positive

Phasor diagram of currents or voltages

Current 2nd, 15th harmonics with THD

Voltage 3-phase

Voltage residual

Voltage zero sequence

Voltage positive sequence

Voltage negative sequence

Frequency
