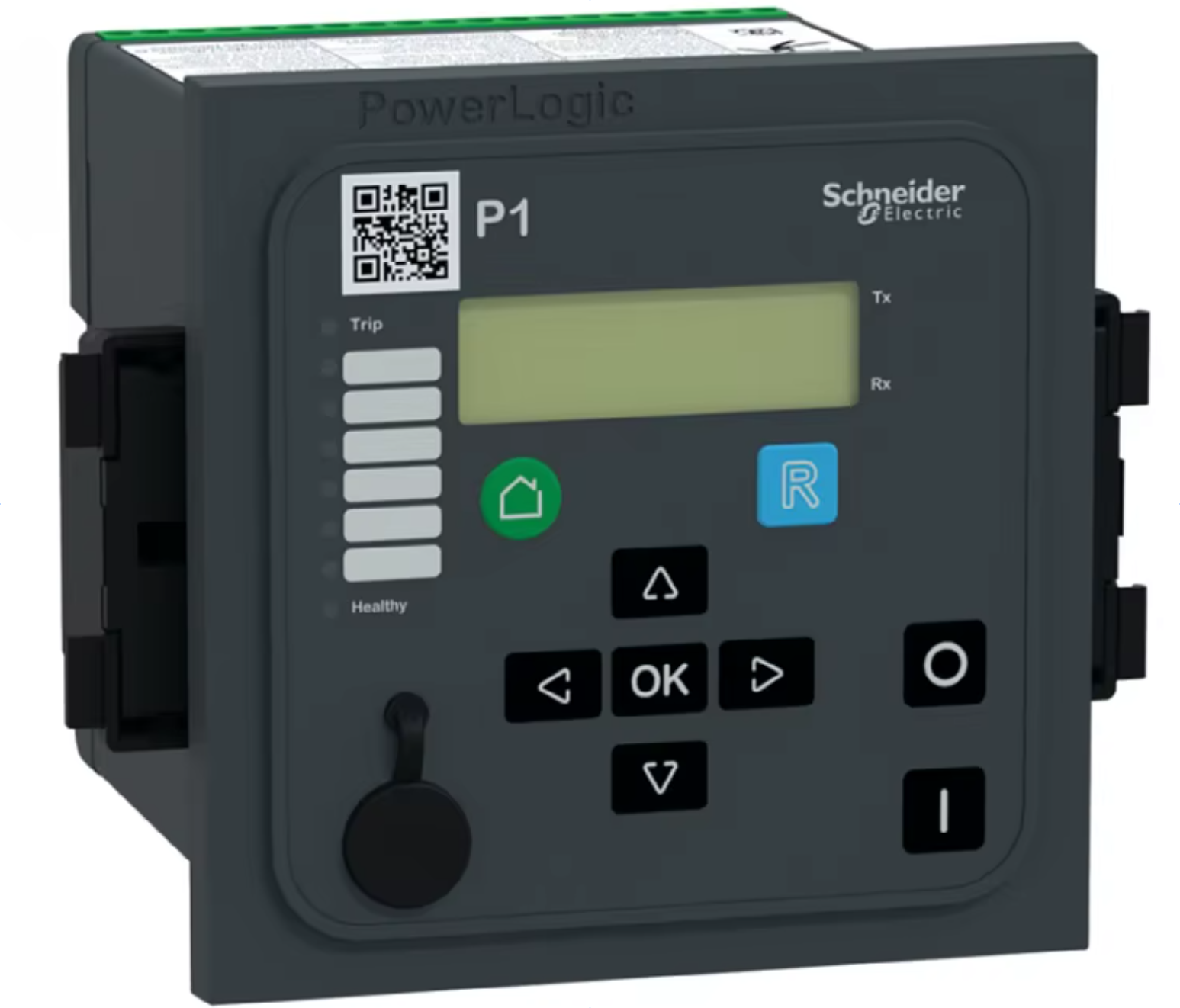

Easergy P1 was conseived for applications with conventional auxiliary power and where auxiliary voltage is not available or not guaranteed by using innovative Self-Power or Dual-Power modes (Easergy MiCOM P115 and P116).

 Flexible mounting options using accessories allows Easergy P11x to be mounted as Flush, Panel, Wall, DIN Rail or Withdrawable mounting.

All devices include digital inputs and outputs and an inbuilt USB port for fast connection to setting softwar (Easergy Studio or Easergy Pro).

Easergy P1 relays include many additional model specific features, dedicated to their intended purpose, such as:

Recording of faults, events and disturbances

RS485 communication ports

Capacitive discharge output (sensitive trip coils, strikers and flags available in P115 and P116)

Selectable measuring criteria: True RMS or fundamental frequency current measurements

Conventional CT inputs or Extremely compact solution using dedicated LV Phase Ring Core CTs

Based on more than 100 years of experience in medium voltage protection relays, Easergy P1 benefits from the reliability of our well known ranges Sepam, MiCOM and Vamp.

Benefits：

Good feature/price ratio

Compact case sizes with high functionality

Quick spring mounting klips to be able to fix the relay in less then 10 seconds

Many embeded functions

Many embeded lenguages

No need for auxiliary supply, reduced costs auxiliary voltage circuits not needed

Built-in USB setting port (depending on the model )

SCADA Communications

Cost reduction using energy tripping outputs

Mounting options using accessories

Built-in Trip/Close CB command pushbutton

Reliablility based F2on 100 years of protection relays experience

Applications：

Comercial and Industrial buildings, Industrial Plants, Transport and Renewable energy

Advanced LV/MV Feeder, Capacitor bank and Transformer applications requiring basic recording and communication capability

When an auxiliary supply is not available or not guaranteed

Applications demanding compact case sizes

Cost optimized solutions
