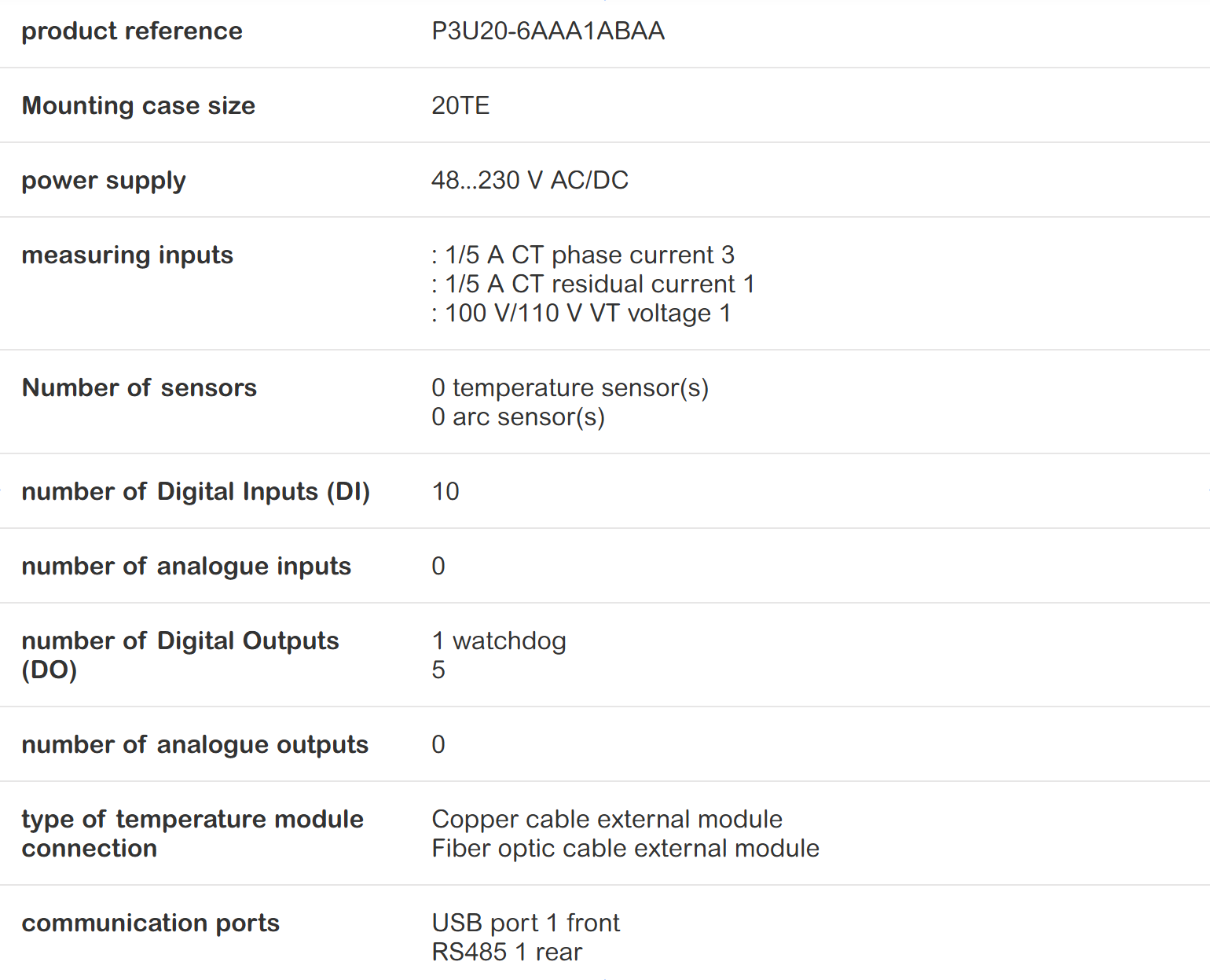

Perfectly suited for buildings and industry, utilities, and large industrial processes. The relay include protection for overcurrent, overload, broken conductor, earth-fault and breaker failure as per ANSI. It also feature an automatic recloser, a switch ON to fault, inrush protection and lockout among others. Simple, reliable, safe and easy-to-use, thanks to the User Interface display. The protection relay can to be supplied by a 48 VAC/VDC to 230 VAC/VDC network. It include 10 digital inputs, 1 RS485 communication port and 1 USB on front of the device. Mechanical dimensions are 169.5 mm in height, 170 mm in width and 205 mm in depth. The relays are certified with EN 60255-26 for electromagnetic compatiblity. The device is compatible with aditional modules and accessories: connection cables, communication modules, temperature and analogue input and output modules, LPVT & PLCT option, arc flash sensors, and other accessories.

protection functions:

Phase undercurrent 37

Negative sequence overcurrent 46

Broken conductor 46 I2/I1

Excessive starting time, locked rotor 48/51LR

Thermal overload protection 49

Phase overcurrent 50/51

Earth fault overcurrent 50N/51N

Breaker failure 50BF

Switch ON to fault (SOTF)

Capacitor bank unbalance 51C

Capacitor overvoltage 59C

Neutral voltage displacement 59N

Motor restart inhibition 66

Directional earth fault 67N

Transient earth fault 67NI

CT supervision 60

VT supervision 60

H2 detection 68H2

H5 detection 68H5

Recloser 79

Lockout relay 86

Cold load pick-up

Programmable stages 99

Programmable curve
