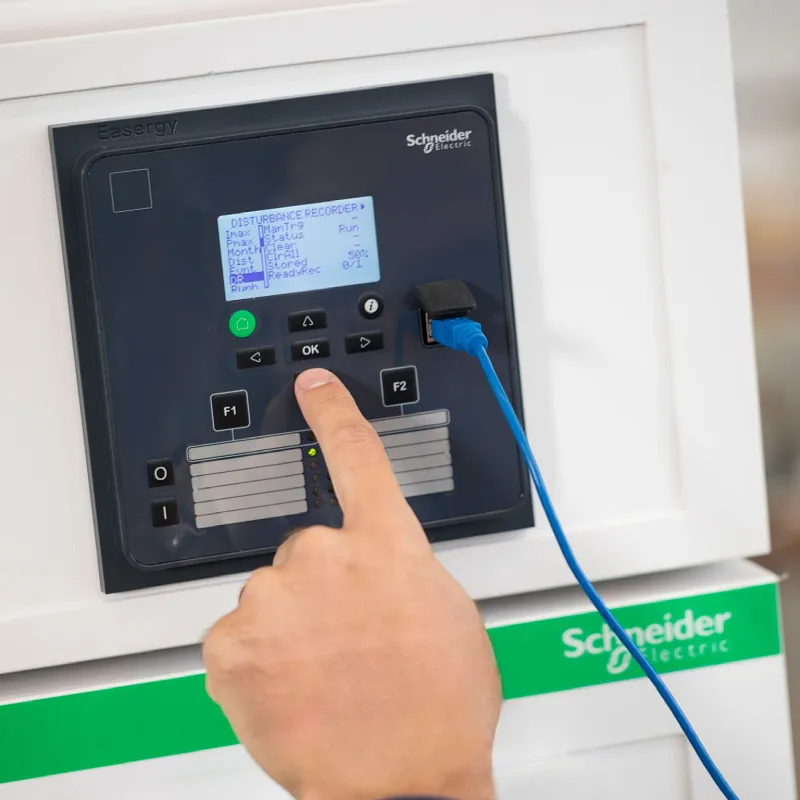

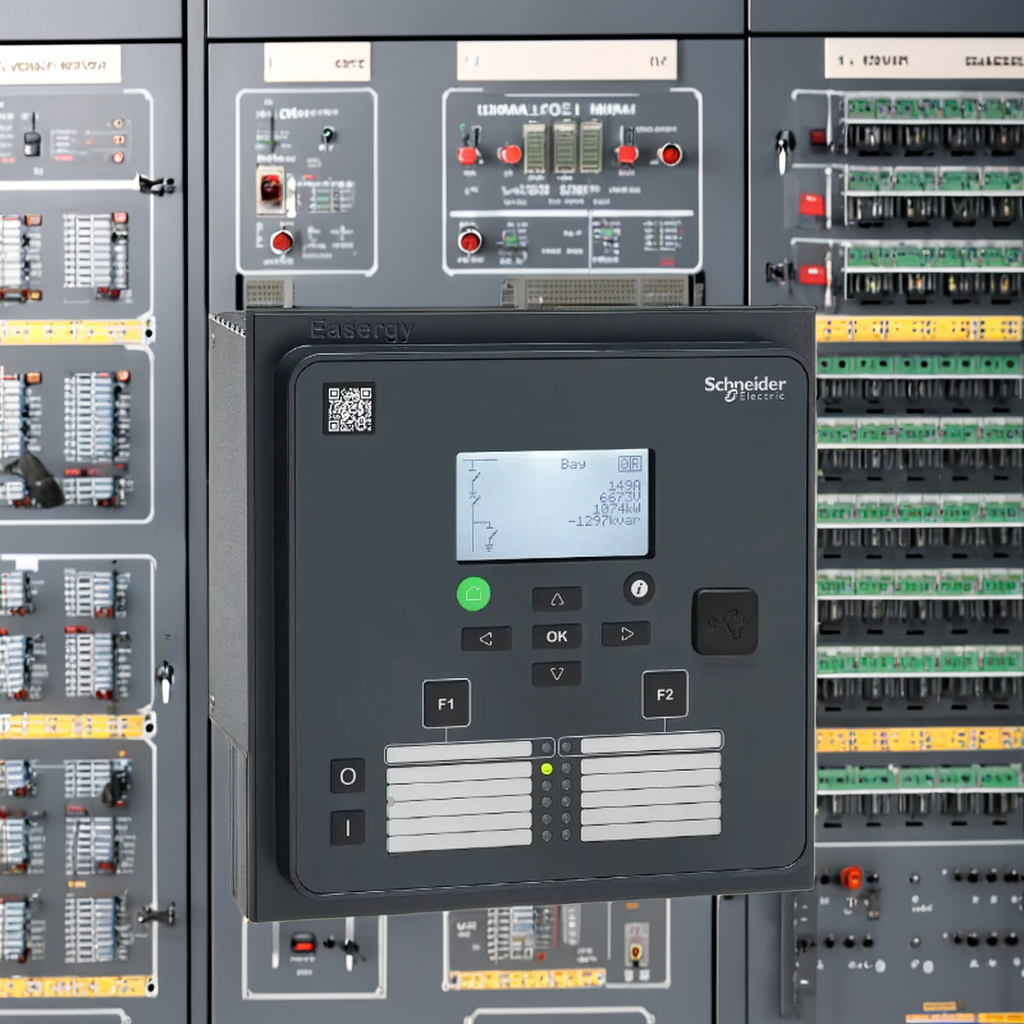

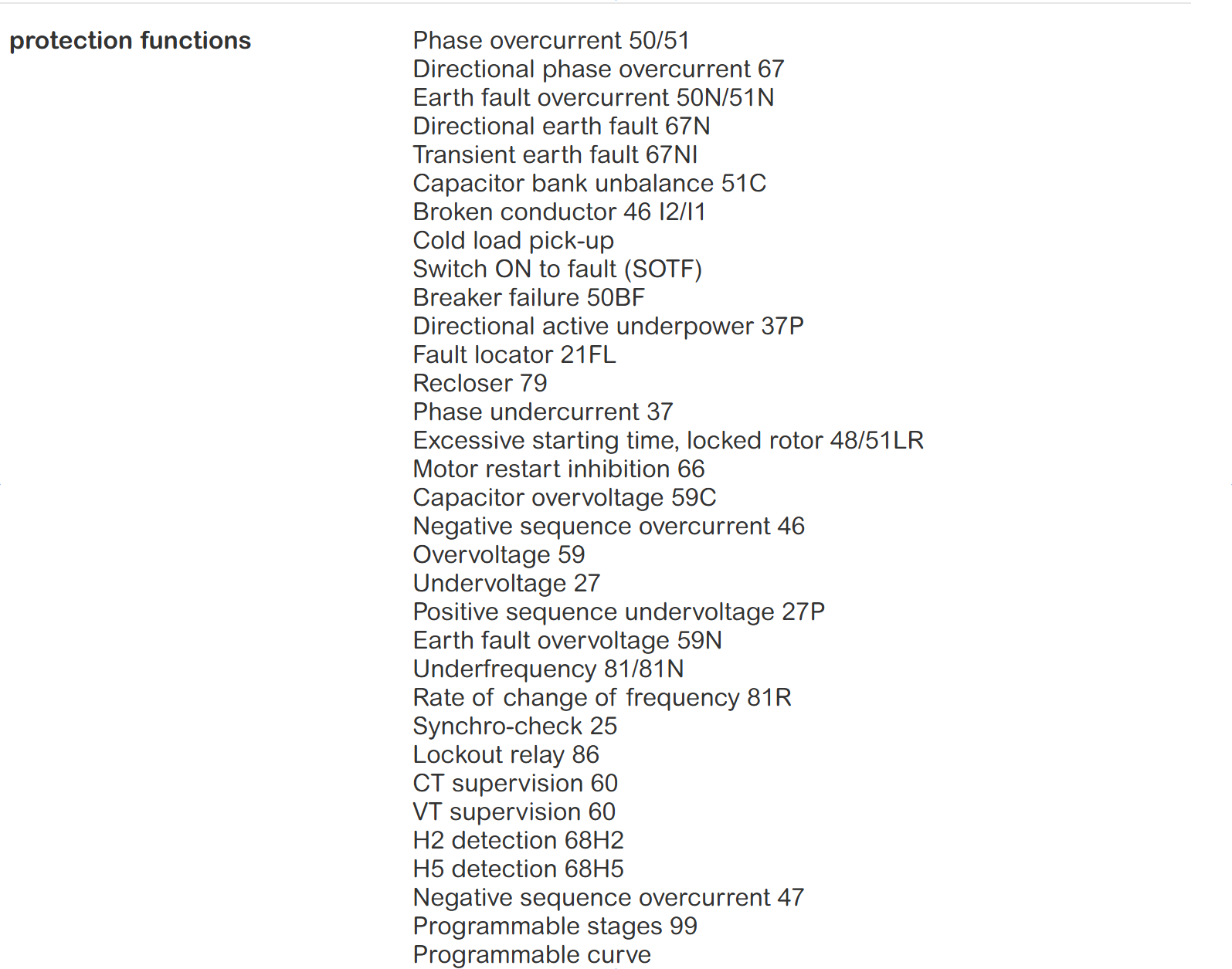

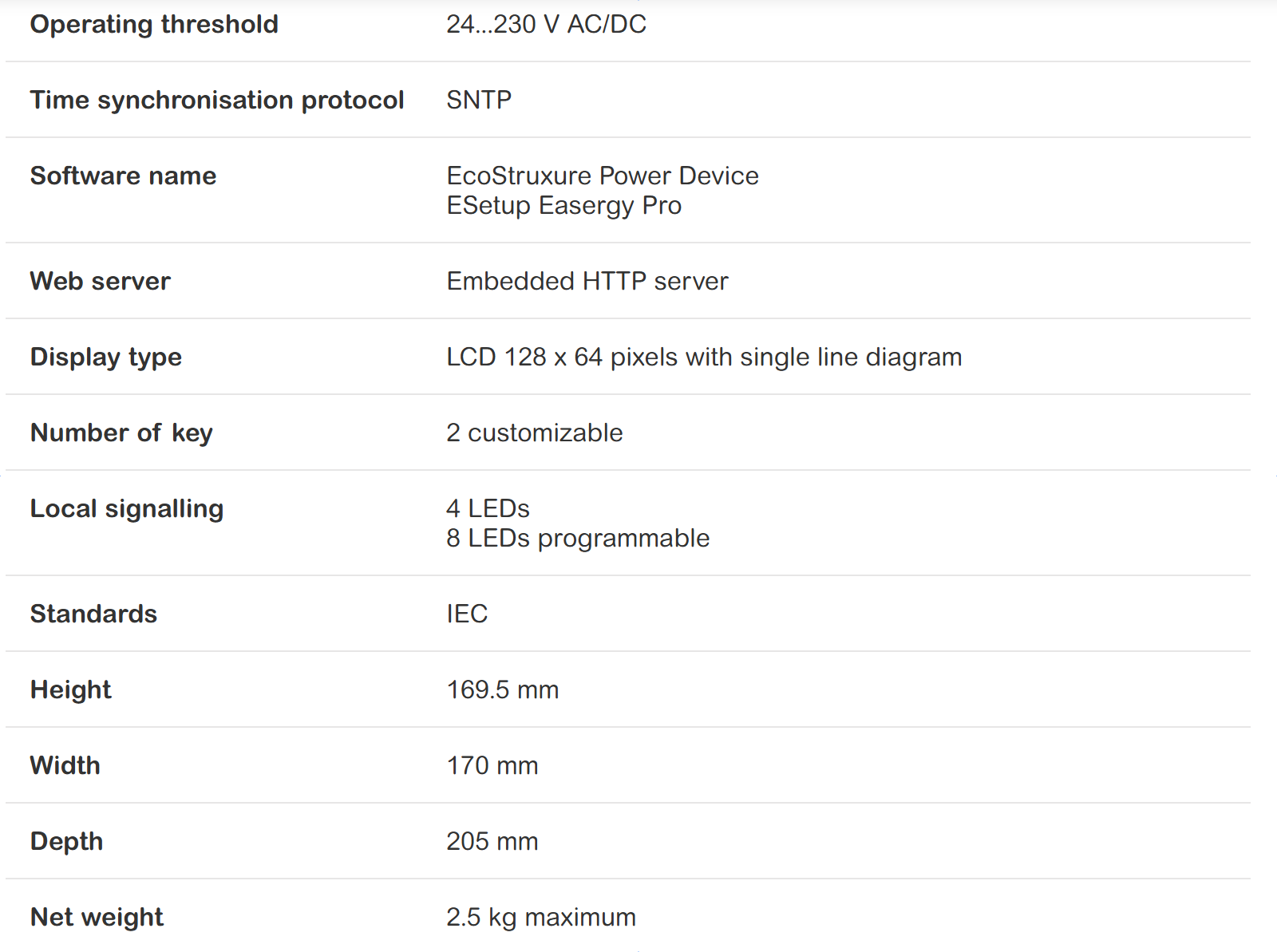

Perfectly suited for buildings and industry, utilities, and large industrial processes. Perfectly suited for buildings and industry, utilities, and large industrial processes. The relay include protection for overcurrent, overload, broken conductor, earth-fault and breaker failure as per ANSI. It also feature an automatic recloser, a switch ON to fault, inrush protection and lockout among others. Simple, reliable, safe and easy-to-use, thanks to the User Interface display. The protection relay can to be supplied by a 48 VAC/VDC to 230 VAC/VDC network. It include 16 digital inputs, 2 RJ45 communication port and 1 USB on front of the device. Mechanical dimensions are 169.5 mm in height, 170 mm in width and 205 mm in depth. The relays are certified with EN 60255-26 for electromagnetic compatiblity. The device is compatible with aditional modules and accessories: connection cables, communication modules, temperature and analogue input and output modules, LPVT & PLCT option, arc flash sensors, and other accessories.
