Schneider protection relay

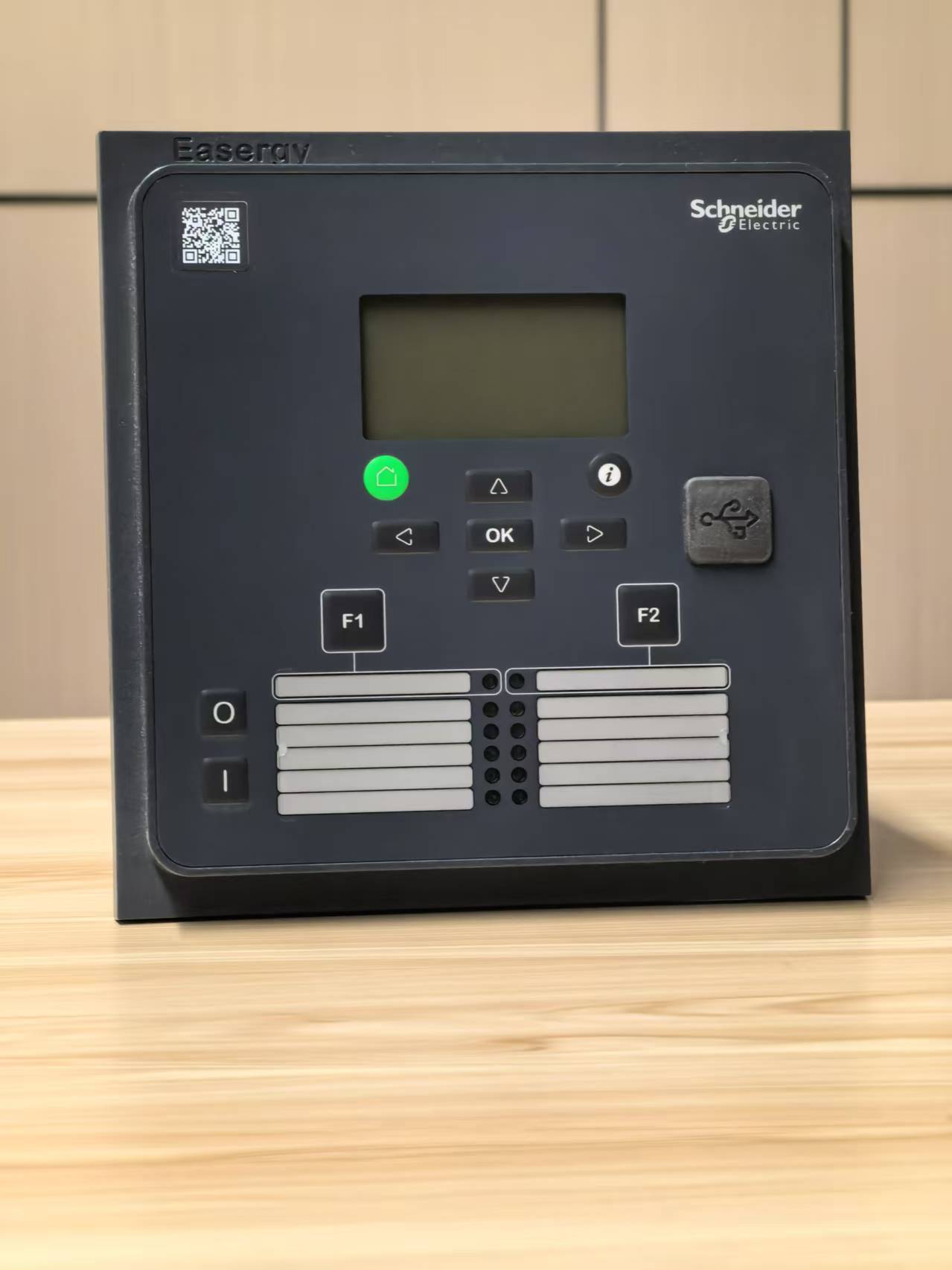

REL 52008 Easergy P3U30, 4L ring lug, 4U, 16 digital inputs / 8 digital outputs, auxiliary voltage: 48–230 V, input voltage: 110–230 V, 2 × RJ-45 ports

$1745

Perfectly suited for buildings and industry, utilities, and large industrial processes. Perfectly suited for buildings and industry, utilities, and large industrial processes. The relay include protection for overcurrent, overload, broken conductor, earth-fault and breaker failure as per ANSI.

The protection relay can to be supplied by a 48 VAC/VDC to 230 VAC/VDC network. It include 16 digital inputs, 2 RJ45 communication port and 1 USB on front of the device. Mechanical dimensions are 169.5 mm in height, 170 mm in width and 205 mm in depth. The relays are certified with EN 60255-26 for electromagnetic compatiblity. The device is compatible with aditional modules and accessories: connection cables, communication modules, temperature and analogue input and output modules, LPVT & PLCT option, arc flash sensors, and other accessories.

Features:

Perfectly suited for buildings and industry, utilities, and large industrial processes.

Simple, reliable, safe and easy-to-use, thanks to the User Interface display

The protection relay can to be supplied by a 48 VAC/VDC to 230 VAC/VDC network

It also feature an automatic recloser, a switch ON to fault, inrush protection and lockout among others
